What Is IT Mapping?
Today’s organizations operate in a hybrid multi-cloud and virtualized world. The ability to do IT mapping of infrastructure and application dependencies on-premises and in the cloud is the foundation of many business processes. These include incident management, documenting and managing IT assets, cloud migration, data center transformation, business continuity and disaster recovery, and cybersecurity and microsegmentation.
IT infrastructure mapping builds a map that provides a visualization of a network’s topology and structure. It is highly useful for understanding both the physical and logical layout of a network, seeing the relationships between devices and applications, and identifying problems or opportunities for optimization. An IT infrastructure map is often the best way to troubleshoot complex issues involving hardware and software on a network.
An IT infrastructure map is a detailed diagram that illustrates which servers, applications, and other endpoints are deployed on the network and the network equipment that manages traffic such as routers, firewalls, and ports.
Every digital organization now needs a comprehensive (all environments), real-time, fast, and repeatable application dependency mapping tool that doesn’t affect performance. (For more information, see The Complete Guide to Application Mapping.)
This is part of an extensive series of guides about information security
Benefits of IT Mapping
Enhanced Visibility
One of the primary benefits of IT mapping is that it enhances visibility into your IT infrastructure. With a comprehensive map, you can see exactly what assets you have, where they are, how they’re connected, and how they’re being used.
Related content: Read our guide to network microsegmentation
This improved visibility leads to a better understanding of your IT landscape. You can see how changes in one area might impact other areas, identify potential bottlenecks or vulnerabilities, and make more informed decisions about your IT strategy.
Better Risk Management
Another key benefit of IT mapping is enhanced risk management. By providing a comprehensive view of your IT landscape, an IT map can help you identify potential risks and vulnerabilities.
For instance, you might identify a critical server that’s running outdated software, a network connection that’s not properly secured, or a database that’s not being regularly backed up. By identifying these risks, you can take proactive steps to mitigate them before they lead to a major incident.
Related content: Read our guide to network mapping tools
Improved IT Governance
IT mapping also plays a crucial role in IT governance. By providing a clear picture of your IT landscape, it can help you establish and enforce IT policies and procedures.
For example, you might use your IT map to define what software is allowed on your network, what hardware configurations are acceptable, and what security measures need to be in place. You can also use it to track compliance with these policies, identify any deviations, and take corrective action as needed.
Learn more in our detailed guide to microsegmentation beginners guide
An IT map can also support strategic planning. By understanding your current IT landscape, you can make more informed decisions about future investments, identify areas for improvement, and align your IT strategy with your overall business goals.
Performance Optimization
Finally, IT mapping can help optimize the performance of your IT infrastructure. By understanding how your IT assets are connected and how they’re being used, you can identify opportunities for optimization.
This might involve consolidating servers, reconfiguring networks, updating software, or other steps to improve efficiency and performance. Moreover, by tracking changes over time, you can measure the impact of these optimizations and continuously refine your approach.
Lanir specializes in founding new tech companies for Enterprise Software: Assemble and nurture a great team, Early stage funding to growth late stage, One design partner to hundreds of enterprise customers, MVP to Enterprise grade product, Low level kernel engineering to AI/ML and BigData, One advisory board to a long list of shareholders and board members of the worlds largest VCs
Tips from the Expert
In my experience, here are tips that can help you better leverage IT mapping:
- Automate asset discovery Utilize automation tools to regularly scan and update your asset inventory. This ensures your map reflects real-time changes and reduces the risk of human error.
- Integrate with CI/CD pipelines Link your IT mapping tools with your Continuous Integration/Continuous Deployment (CI/CD) pipelines to automatically update dependencies as new applications and services are deployed.
- Leverage AI and ML for insights Implement AI and ML to analyze your IT map for patterns and predictive maintenance. These technologies can help you anticipate failures and optimize performance proactively.
- Establish clear data governance policies Define and enforce strict data governance policies to ensure that all mapped data is accurate, secure, and compliant with regulatory standards.
- Conduct regular dependency audits Periodically audit application dependencies to ensure they are still valid. This helps in maintaining an accurate map and avoiding potential disruptions due to broken dependencies.
How IT Mapping Works
IT mapping is a process that involves creating a visual representation of an organization’s IT infrastructure, including hardware, software, applications, and data flows. Here are the steps involved in how IT mapping works:

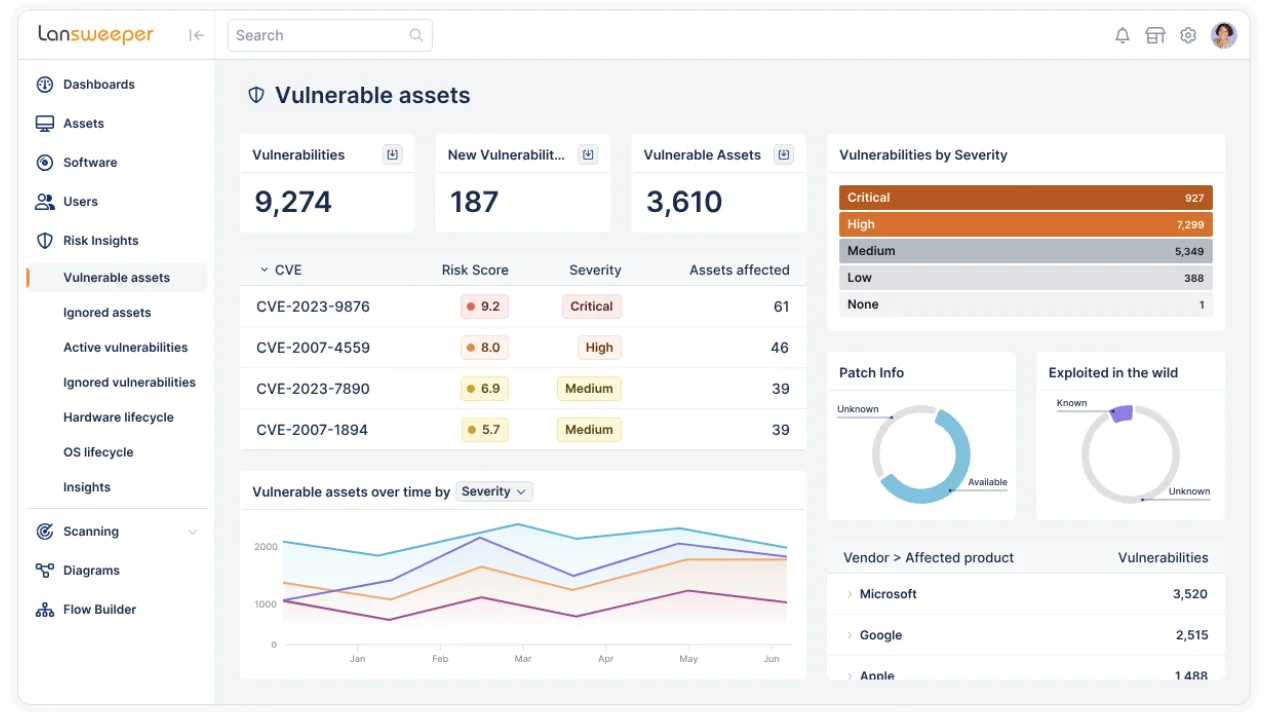

1. Inventory assets: The first step in IT mapping is to inventory all IT assets, including hardware devices, software applications, and data sources. This includes identifying the location, specification, and configuration of each asset.
2. Identify relationships: Once the inventory is complete, the relationships between IT assets must be identified. This includes data flows, connections, and dependencies between different parts of the system.
Related content: Read our guide to IT system mapping

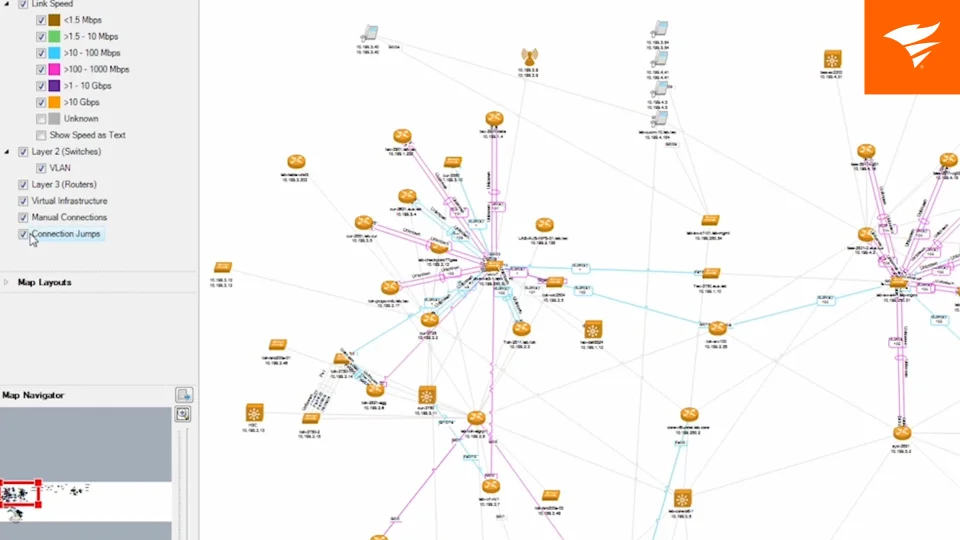

3. Create visualizations: With the assets and relationships identified, the IT environment can be visualized using diagrams or other visual representations. This includes depicting hardware and software components, data flows, and connections between different parts of the system.
4. Document details: The IT mapping process also involves documenting the IT environment, including specifications, configurations, and other important details about each asset. This documentation can be used for reference and to support IT decision-making.
Learn more in our detailed guide to check SSL certificates
5. Analyze and optimize: With the IT environment documented and visualized, it is possible to analyze the infrastructure to identify areas for optimization or improvement. This includes identifying inefficiencies, redundancies, or security vulnerabilities. Based on the analysis, IT mapping can inform IT planning and decision-making.
6. Update and maintain: IT mapping is an ongoing process that requires updating and maintenance to remain accurate and relevant. As the IT environment evolves, IT mapping must be updated to reflect changes in hardware, software, and data flows.
IT Mapping Challenges for Digital Organizations
IT infrastructure and application mapping is a process for discovering and understanding every application and device, along with their dependencies and services across an organization’s entire digital footprint. With a basic understanding of the broad nature of application dependency mapping, organizations can look at these challenges within and across all environments.
Cloud Migration
Nearly every organization has some applications and workloads in the cloud or has upcoming plans in place to do so. According to Nutanix research, 91% of surveyed enterprises migrated at least one application in the last year.
Learn more in our detailed guide to vmware aria operations for networks
On-premises and cloud applications will need to maintain their dependencies to databases, workloads, and other applications after a migration to avoid scenarios where they stop working. The lack of proper application dependency mapping can lead to the disruption or breaking of these dependencies, which can exist across bare metal, virtual servers, and cloud providers, in any migration process. These needs make it vital to have a clear view of every dependency when planning and executing a migration.
Related content: Read our guide to network visibility
Disaster Recovery and Microsegmentation
BCDR strategies keep an organization operational in the wake of cybersecurity attacks that get inside the network (such as ransomware) or natural disasters. This approach is often a major reason for cloud migration and data center transformation (via a hybrid-cloud model mix of on-premises and cloud).
An organization must identify all dependencies and migrate them together to ensure proper disaster recovery. If not, the whole point of backups is moot since they lose ongoing application updates and dependencies without ongoing application mapping.
Microsegmentation is an important way to protect the network from attacks by separating environments, applications, workloads, VMs, and users to apply least privilege access policies to data/workflows based on compliance needs. Without a clear understanding of application and IT infrastructure using comprehensive mapping, it becomes impossible to protect these different areas, applications, and workflows.
Related content: Read our guide to microsegmentation guide
Data Center Transformation
Organizations can easily lose track of dependencies between applications, devices, and IT infrastructure that grows in complexity inside their data center, the cloud, and beyond the network’s edge. These environments and connections are changing daily in the modern organization where IT documentation and assessment are critical to keeping data, devices, applications, and workflows moving and secure.
While there are several methods that organizations have historically used to map applications and IT infrastructure, they all have their pros and cons. To understand why they each may have blind spots that make comprehensive and real-time mapping challenging, it’s best to start by looking at the different approaches in use today.
Application Mapping Approaches: Pros and Cons
Since the emergence of ITSM and ITAM, organizations have understood how imperative it is to keep track of IT infrastructure, devices, applications, services, and their dependencies.
1. Cloud Provider and IT Mapping Tools
Even in the current cloud era, which is always changing, the three largest providers—AWS, GCP, and Azure—all have service discovery tools for mapping application resources.
Pros
These tools can play a vital role in understanding the state of all cloud resources to help limit cloud spend, improve developer productivity, and increase application availability among others.
Cons
In a hybrid multi-cloud world, underlying dependencies can stretch across on-premises data centers and multiple clouds and providers. These mapping tools can often be relegated to silos (by design) that prevent a holistic view and create unmanageable complexity in the mapping process.
Related content: Read our guide to snmp

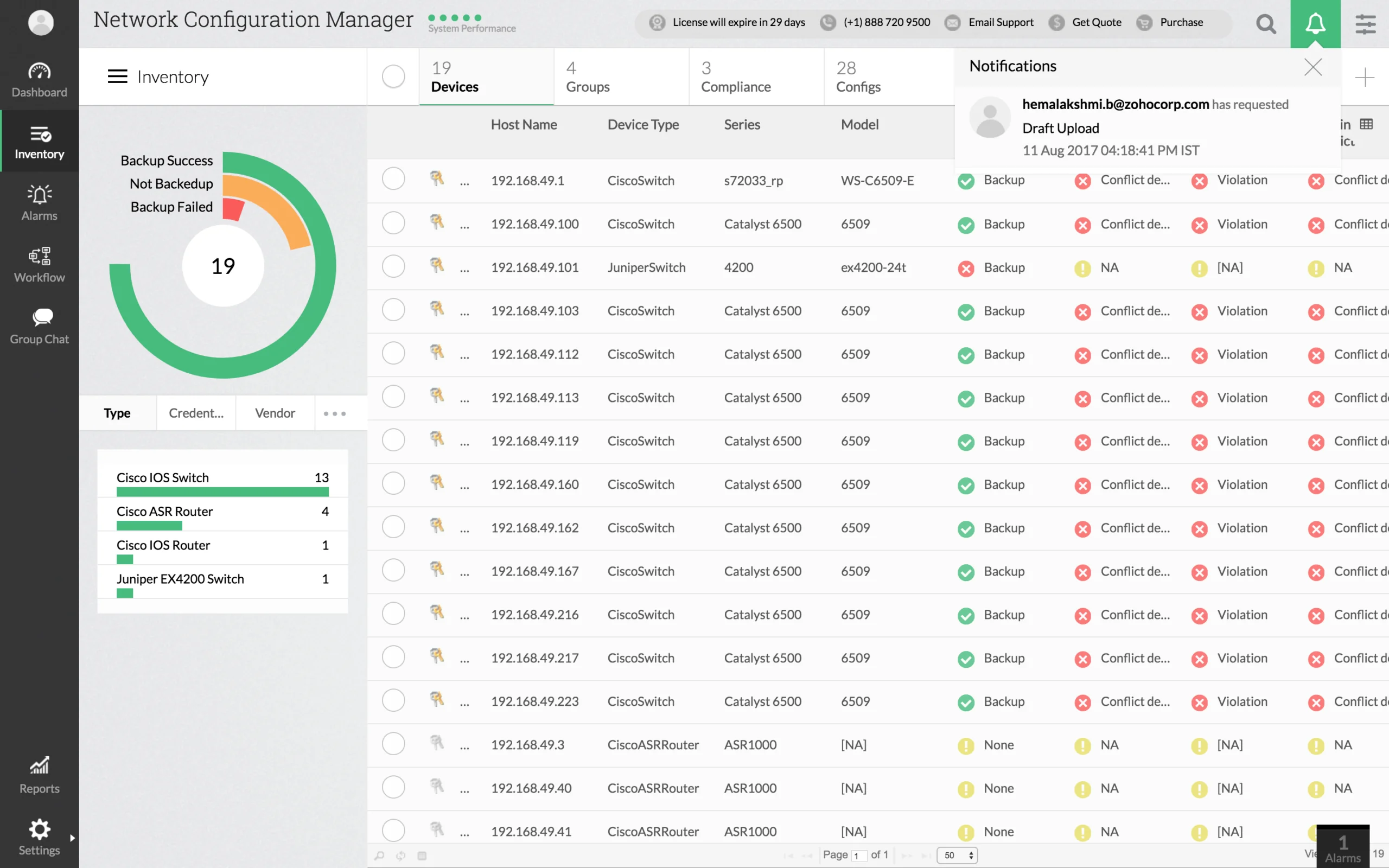

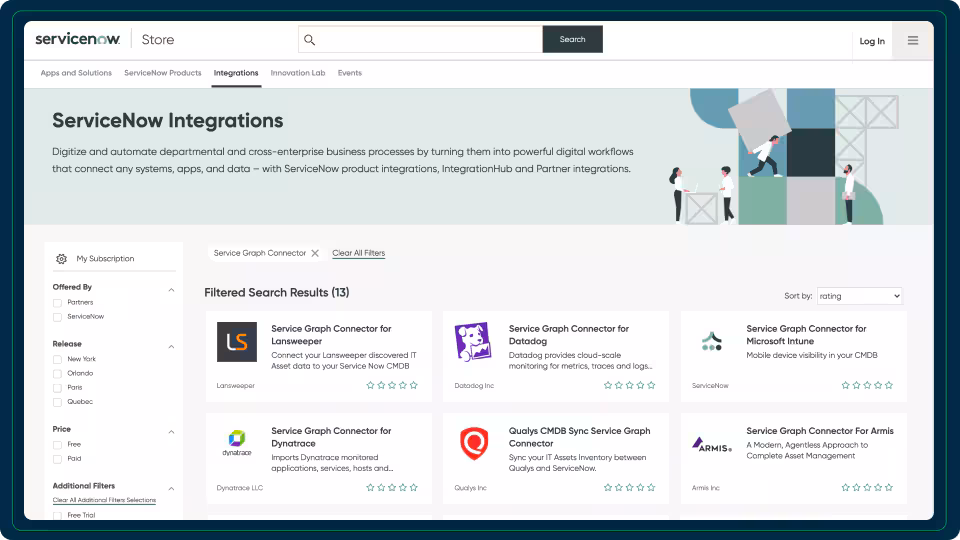

2. CMDB Mapping
There are many types and configurations of the configuration management database (CMDB) in use across countless organizations. It ideally acts as a repository for storing all information and dependencies related to all IT assets, which are known as configuration items (CI). CIs include hardware, devices, software, and networks, along with their performance, configuration, location, financial, licensing, and maintenance data.
Pros
When a CMDB provides a complete picture of an organization’s assets, it helps the business make better IT decisions through problem resolution, incident response, and updates for networks and infrastructure. Other benefits include planning for business strategy, budgets, and regulatory compliance. The primary challenge with a CMDB is keeping it updated. This plays out in many ways that limit the CMDB as a single source of truth for IT assets across every environment.
Cons
Most IT teams struggle to maintain an accurate CMDB for a variety of reasons, but mostly because IT environments on-premises and in the cloud are constantly changing. Many CMDBs cannot respond to the pace of DevOps or virtual assets like VMs, containers, and other cloud application resources. Others still require manual data entry validation and manual audits to stay up to date with new CI configurations and dependency changes.
Related content: Read our guide to check ssl certificates
Although modern CMBDs include application mapping, they often only collect data based on a specific request. They also can have limited ability to see all changes in dependencies and services and provide root cause analysis within that request. This leads to a limited snapshot-in-time view of an application and some of its dependencies without providing the ability to see if it’s operating correctly and delivering the required service level.

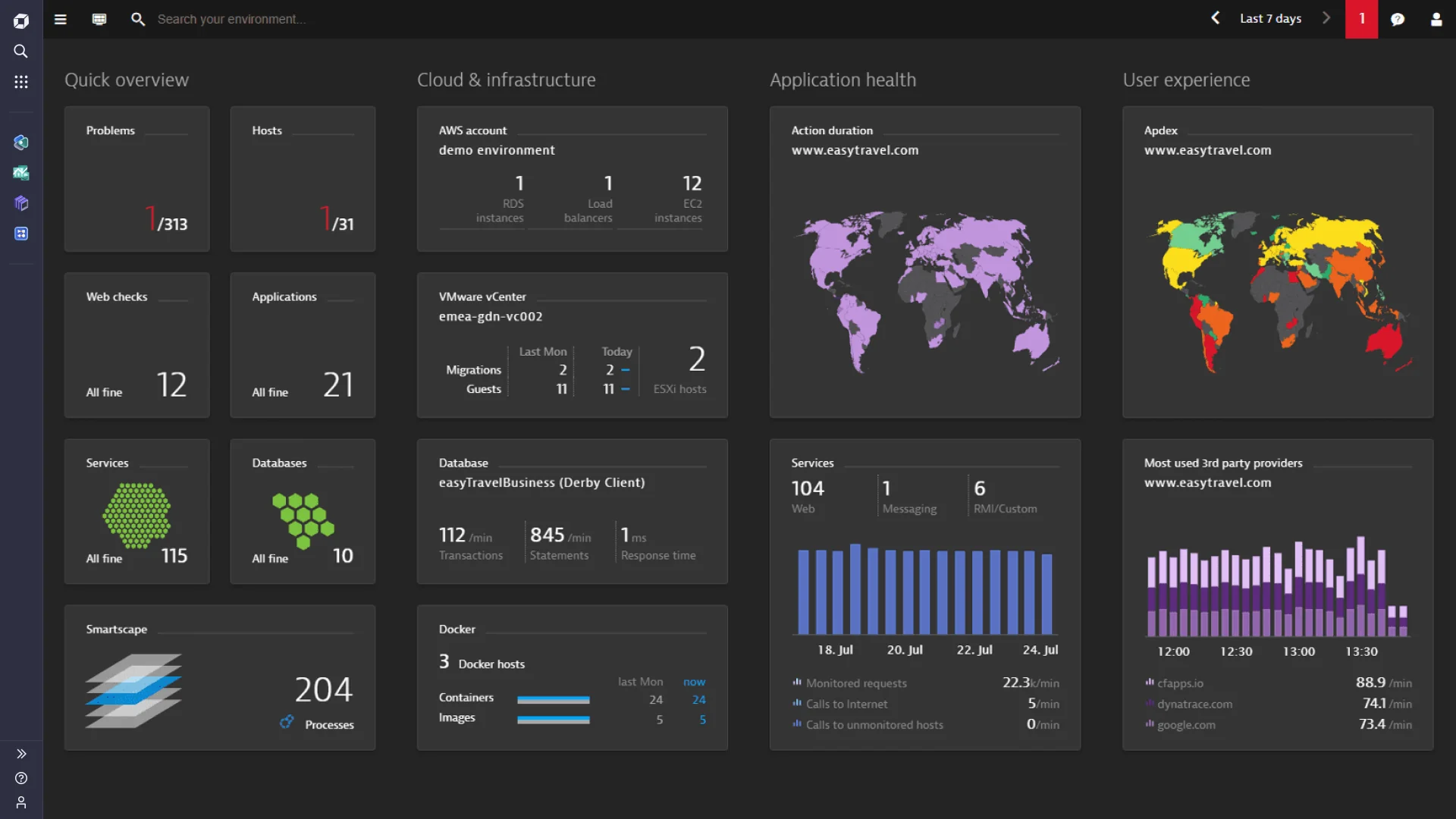

3. Application Performance Management (APM)
APM provides real-time application performance monitoring across an organization’s application portfolio. APM enables a view into service level agreement compliance, performance level, and user challenge identification.
Pros
An APM solution’s diagnostics should give administrators insights into problems within the application stack to plan proactive remediation. These real-time performance alerts and reports generated by the APM are vital to maximizing business revenue, continuity, efficient operation, cost reductions, and end-user experience.
Cons
APM tools require the installation of an agent for targeted infrastructure or applications. The result is that organizations cannot effectively use these tools with new applications and VMs that are spun up and down, or third-party enterprise applications like SAP, as just one example.
The agent-based nature of APM tools creates silos, with gaps in data on application efficiencies across environments, including on-premises and the cloud or multi-cloud. This makes it impossible to see real-time application performance with detailed knowledge across dependencies, in turn making root cause analysis nearly impossible.

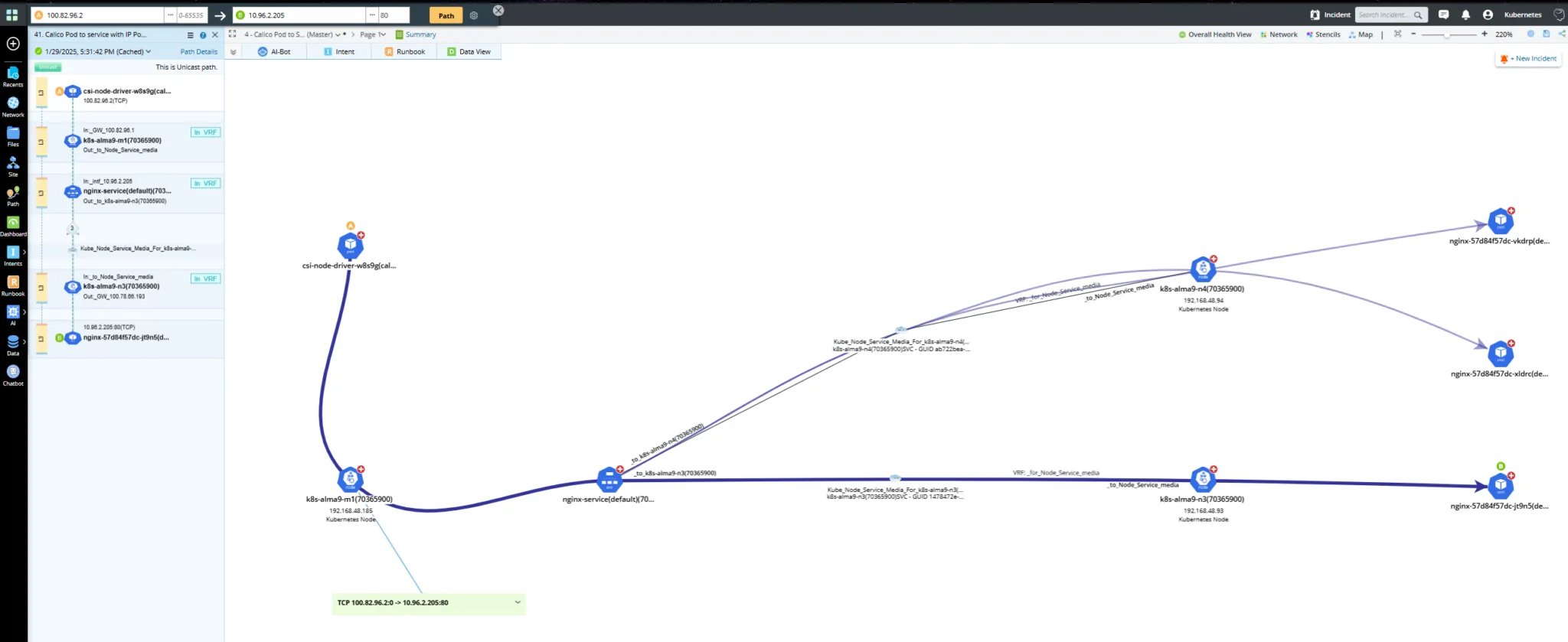

4. Application Dependency Mapping (ADM)
The Application Dependency Mapping (ADM) process identifies all IT and application elements and services across an organization’s IT environment. ADM provides a means of seeing how these elements work together and individually in real time to assess health and proactively make improvements. Most ADM tools work without agents and use various methods for finding application dependencies in real time. This supports the dynamic nature of application development where applications and infrastructure can change daily.
Pros
The right ADM tool can provide the most combined benefits of the solutions covered in this blog. CMDBs currently exist and serve ongoing and unique purposes in many organizations, and some organizations already have an existing APM. In these cases, the ideal ADM can work with these solutions and a world of third-party tools in the enterprise.
Cons
As a mapping tool category, ADM has few downsides, but many of these tools fall short in their ability to provide real-time, repeatable, and comprehensive mapping across environments. The different approaches used by ADM solution providers can deliver different results based on a narrower basis for environment mapping.
This can lead to an incomplete picture of the entire IT infrastructure, its applications, and their dependencies where environmental changes are continuous. The ideal scenario is an ADM tool that captures the state and relationships of all assets across every environment in real time without slowing performance via easily repeatable passive scanning.
Defining the Ideal ADM Tool for IT Mapping
The critical nature of IT mapping is a foundational process that enables any organization to operate, change, and grow while being secure, resilient, and profitable. If there are four words that define the needs of any tool for an organization in the digital age, they would likely be comprehensive, fast, agile, and simple. These apply to IT mapping as well.
Comprehensive
When seeking the ideal ADM tool, it must first be comprehensive so that it maps all IT infrastructure, applications, dependencies, and services across all environments in real time. It must be capable of predicting change via integrated analytics to differentiate between various topologies as it audits changes.
Related content: Read our guide to network topology mapping
Comprehensive alerts should bolster this analysis to pinpoint performance and functionality challenges. The same level of reporting will enable proactive corrective action and business planning for everything from cloud migration and data center transformation to BCDR, security, access, and change management.
Related content: Read our guide to vmware networking basics
Speed and Agility
An ideal mapping tool must have a very fast and easily repeatable process, which requires a great deal of automation and visibility via a single dashboard. The resulting transparency and agility enable both pre- and post-migration mapping and automatic discovery of anything with an IP address to plan long-term hybrid multi-cloud strategies. It can also track the constant changes in the app development lifecycle (including containers, microservices, and API endpoints) and virtualized environments.
Simplicity
The simplicity, repeatability, and speed of the ideal ADM tool enable a consistent real-time view of the global environment. It also makes the resulting data easily available to IT and the business to maximize operational efficiency and innovation. It’s imperative that the tool provide visibility across all networks on the application layer in real time.
Related content: Read our guide to network address translation
This delivers critical data for microsegmentation that fosters maximum security and a zero-trust model for user and app access to thwart cyberattacks. Finally, the ideal ADM tool will do all this while integrating with existing third-party tools and never affecting performance so that the organization always operates with the highest efficiency.
How Faddom Helps With IT Mapping
